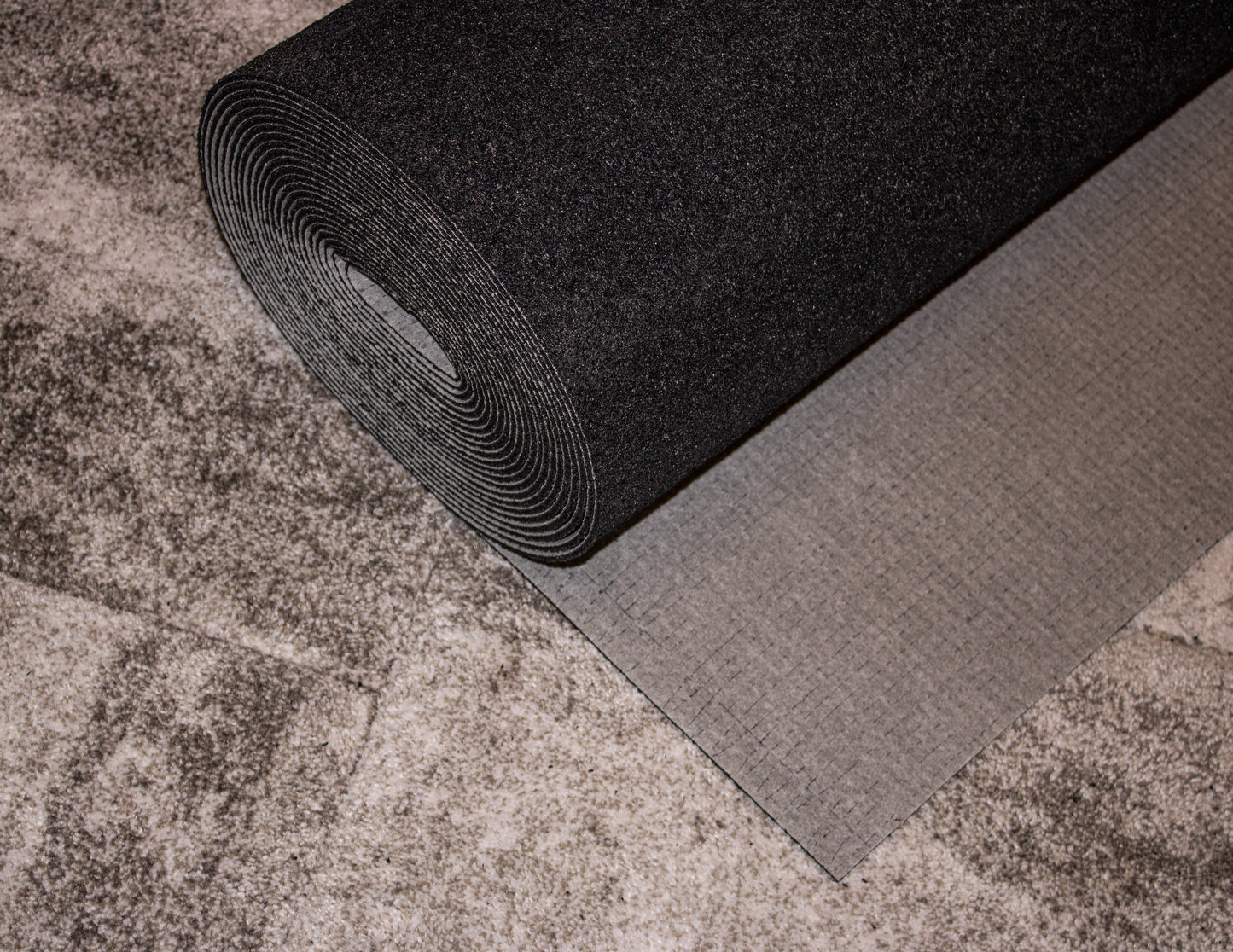

• A roll of Protector™ 5 mm by Dura Undercushions, known for its impact sound reduction capabilities, partially unrolled on a grey, textured surface.

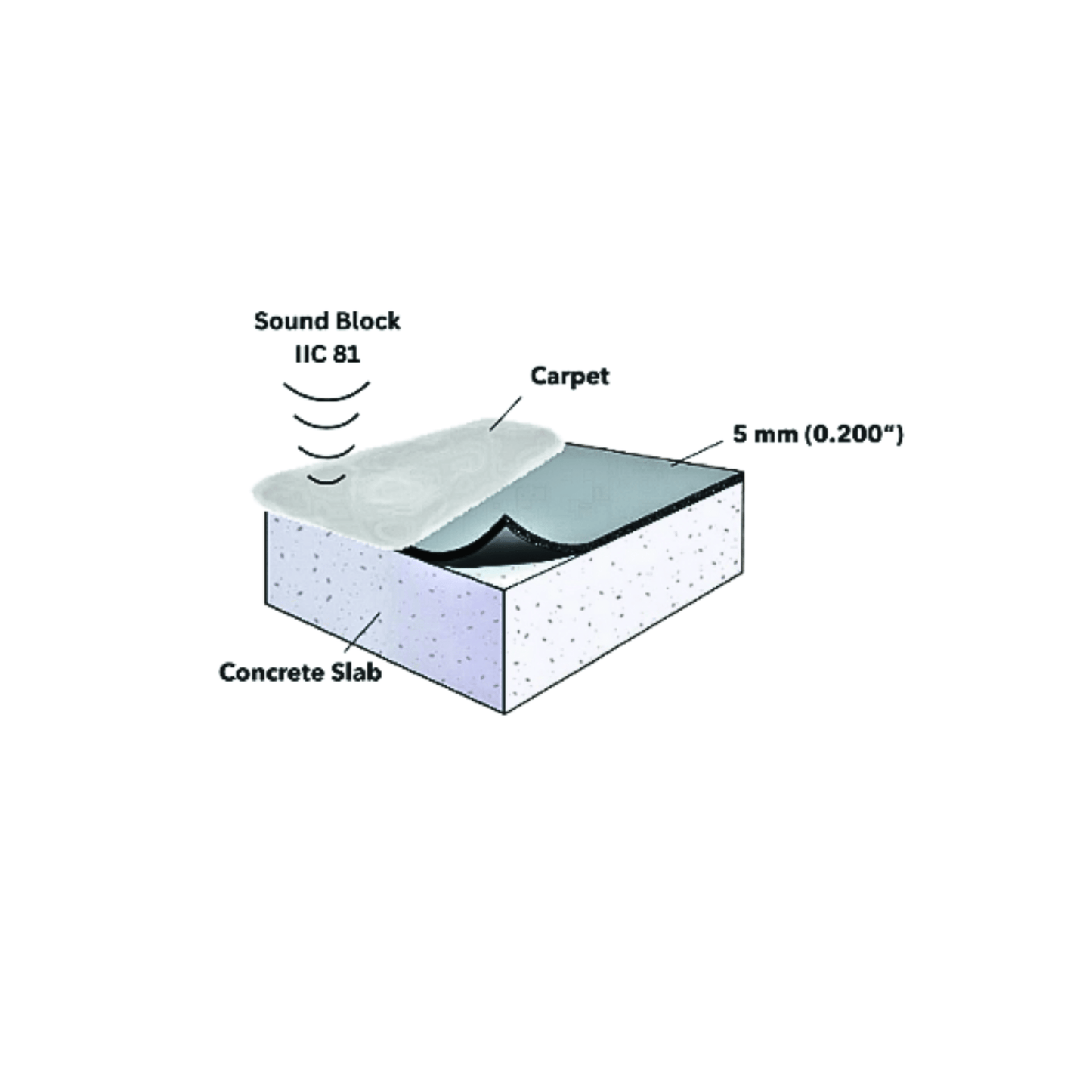

  • A cross-section diagram demonstrates a carpet overlay with underlay labeled "Protector™ 5 mm by Dura Undercushions" for impact sound reduction and a concrete slab beneath, illustrating a 5 mm (0.200") spacing between the carpet and the slab.

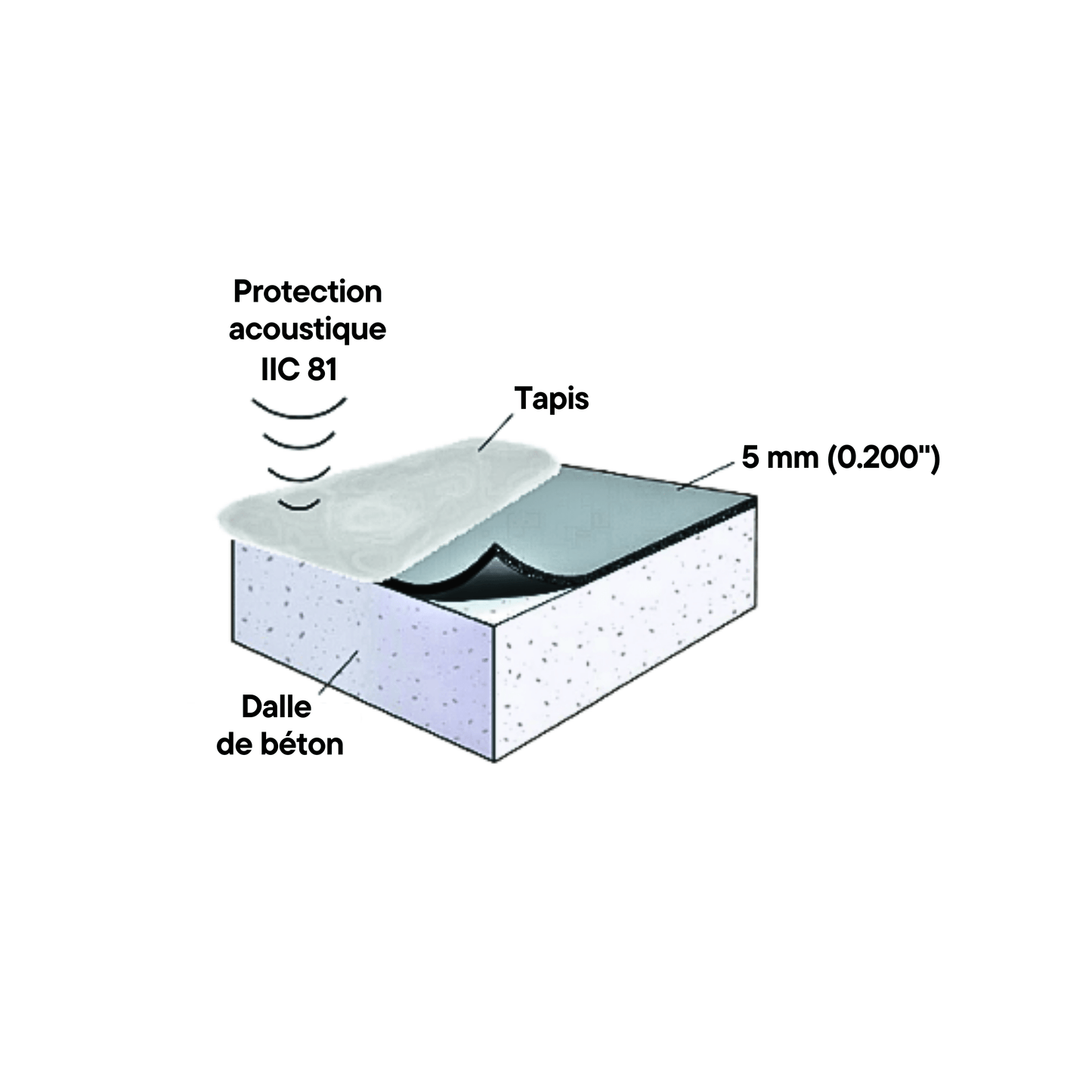

  • Diagram showing a cutaway view of a concrete slab with a Protector™ 5 mm carpet from Dura Undercushions on top, an acoustic protection IIC 81 layer beneath the carpet, and a carpet underlay to enhance impact sound reduction.

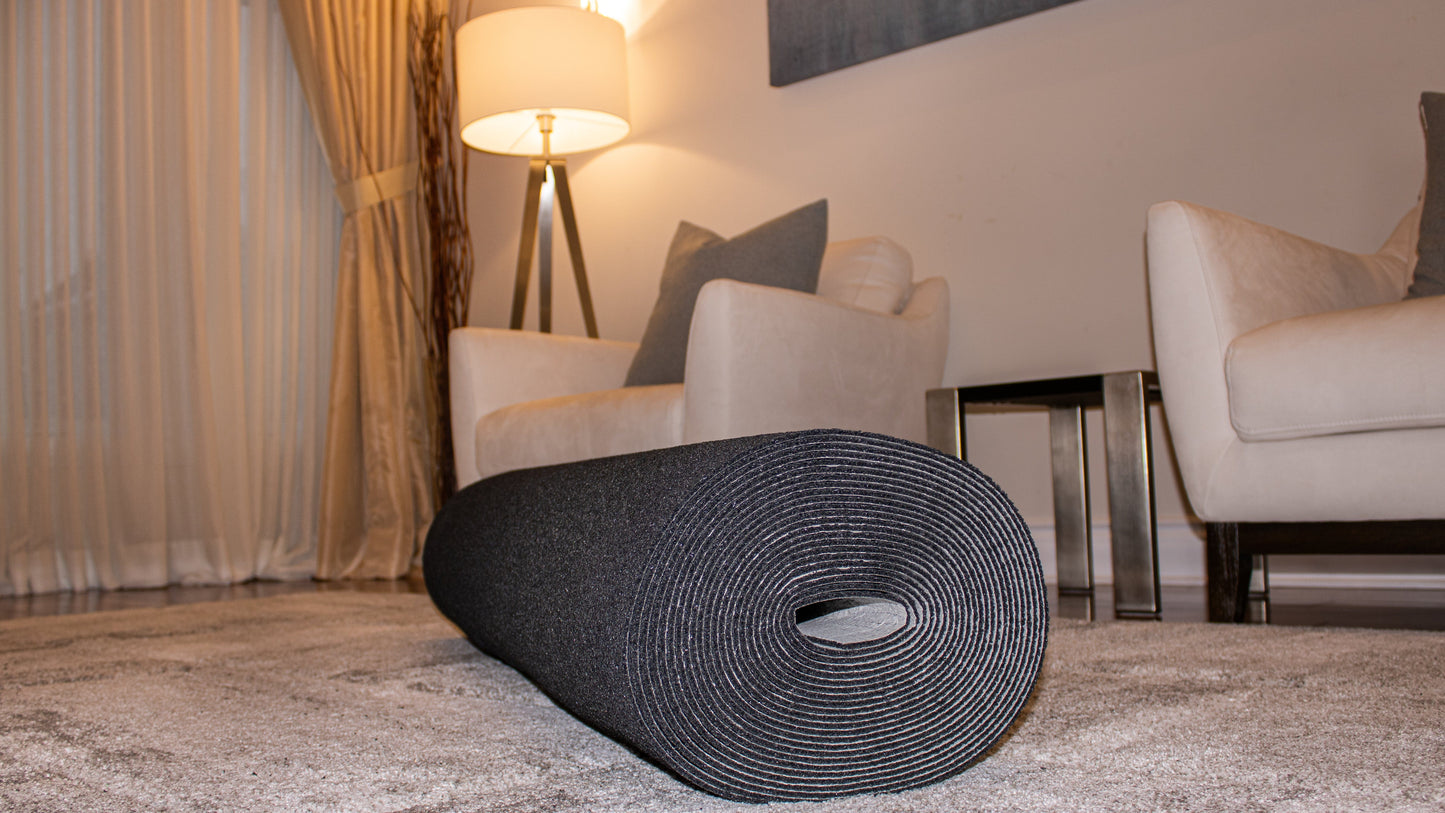

  • A rolled-up Protector™ 5 mm by Dura Undercushions is placed on a carpeted floor in a room with a white armchair, a lamp, and curtains, enhancing the acoustic performance of the space.

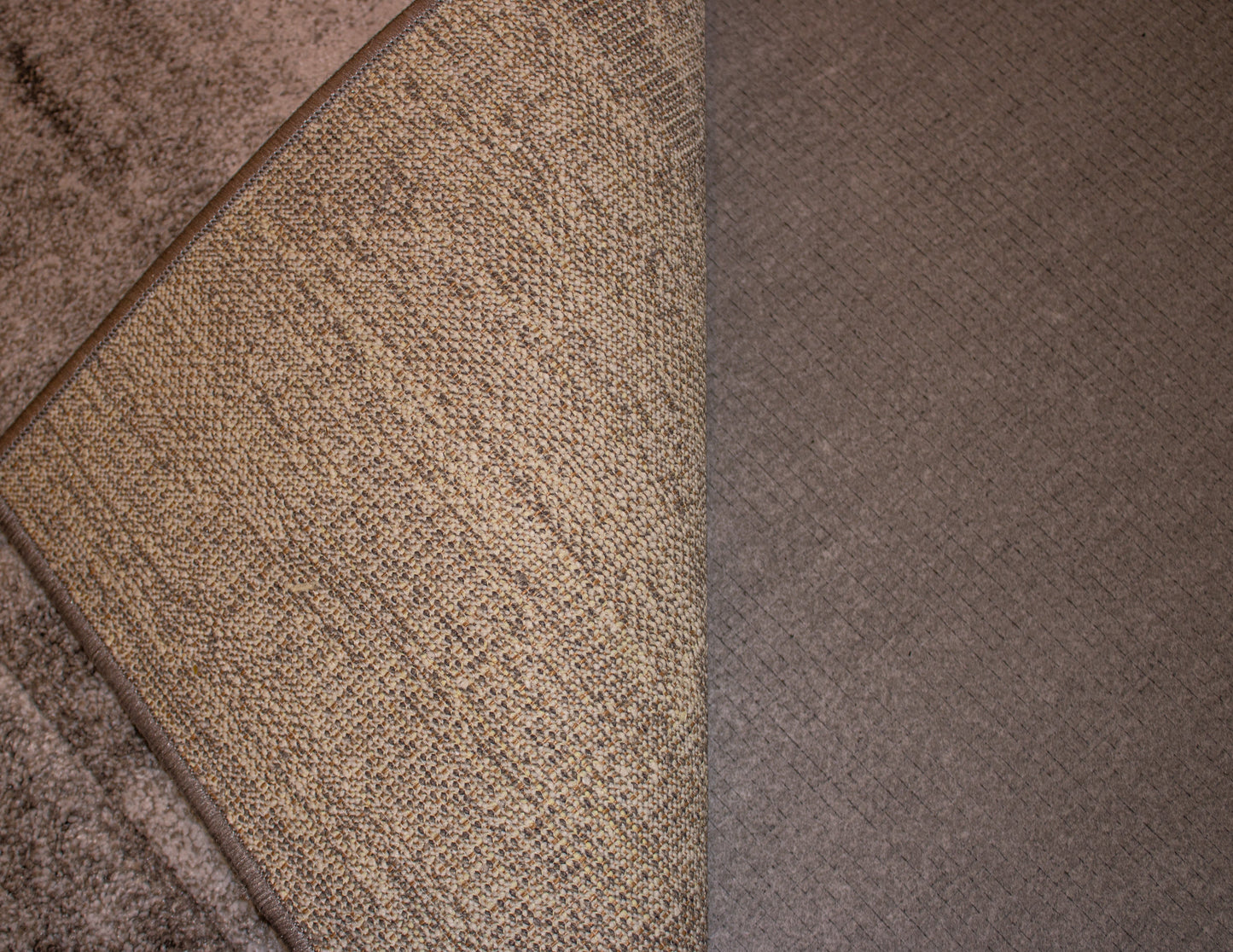

  • Close-up of the corner of a beige textured rug that has been partially folded over, revealing the Dura Undercushions Protector™ 5 mm carpet underlay and an adjacent section of the floor.

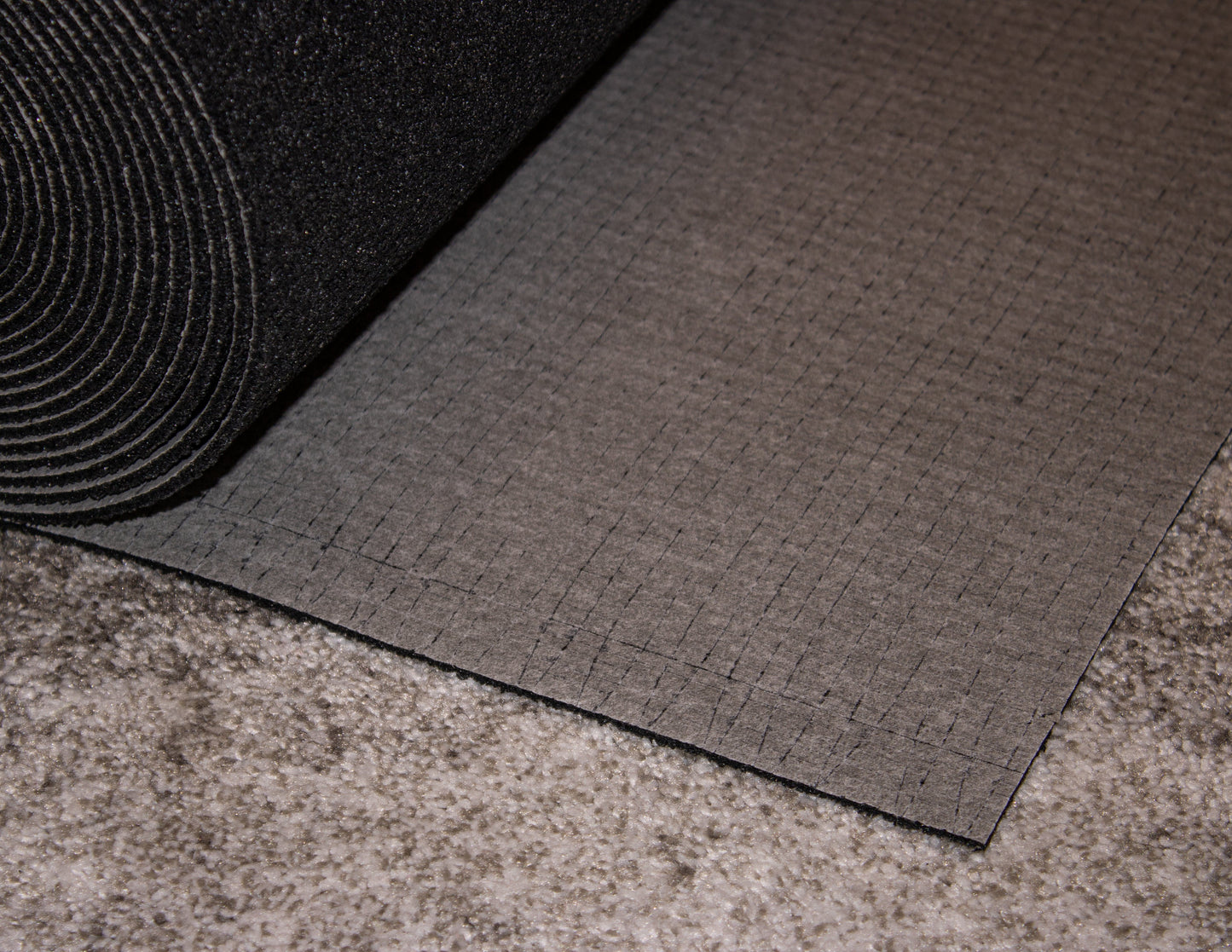

  • Close-up of a partially unrolled Protector™ 5 mm black foam mat by Dura Undercushions on a gray carpeted floor. The foam mat, designed for impact sound reduction, has a textured surface with a grid pattern.
1 6

Protector™ 5 mm

Protector™ 5 mm

PROTECTOR 5mm is a high quality commercial and residential carpet underlay manufactured for high traffic areas. This carpet underpad is ideal for hotels, commercial spaces, condos, and private residences.

PROTECTOR 5 mm carpet padding offers very high acoustic performance. On a 6” concrete slab, the IIC is 81 with wire hung ceiling grid.

Features
  • Engineered to endure heavy foot traffic
  • Superior Impact Sound Reduction: Reduces noise and prevents its spread in the room as well as its transmission through walls and floors
  • Superior Durability: Protects against wear and retains its structure and acoustical value over time
  • Outperforms Traditional Foam Underlays: Protector's rubber composition protects your floors from damage that would typically accelerate with a foam underlayment
  • Ideal for carpets and stair runners
  • Conceals minor imperfections of the subfloor
  • Does not slip and does not collapse during installation
  • Anti-Microbial: Resists mold, mildew, and fungus
  • Certified for use on a radiant heat flooring system
  • Environmentally Friendly: Made with 95% recycled rubber
Request a Quote Have Questions? View full details
Product Specifications

Material Composition: Recycled Rubber

Thickness: 5 mm (13/64")

Roll Width: 54 in

Roll Length: 40 ft

Coverage: 180 sq.ft

Acoustic Value: Up to IIC 81 / ASTM E90 and ASTM E492 - Impact Insulating Class

Green Quality: Green Label Plus approved and contributes to LEED credits

Download Specification
Tools and Materials Needed

For Carpet (Double Glue-Installation)



- Measuring tape

- Utility knife

- Multi-purpose adhesive

- Trowel (consider using a 1/8" x 1/8" x 1/8" U-notch trowel for even adhesive coverage)

- Floor roller



For Carpet (Tackless and Stretch-In Installation)



- Measuring tape

- Utility knife

- Double-sided carpet tape

- Tack strips

- Knee kicker or power stretcher

Associated Resource(s)

LEED Certification

Green Label Plus Certification

Brochure (Protector)

Installation Guide (Protector)

Acoustical Test (Protector)

Flammability Test (Protector)

Recommended For

Carpet
Protector 5 mm

Product Highlights

GREATLY REDUCES IMPACT SOUND

PROVIDES UNDERFOOT COMFORT & DOES NOT COLLAPSE OVER TIME

DESIGNED TO WITHSTAND HEAVY FOOT TRAFFIC

GUARANTEED TO WORK OVER RADIANT HEATED FLOORS

RESISTS MOLD, MILDEW, AND FUNGUS GROWTH

EASY TO INSTALL

CONTRIBUTES TO LEED CREDITS

GREEN LABEL PLUS+ CERTIFIED

MADE FROM RECYCLED RUBBER

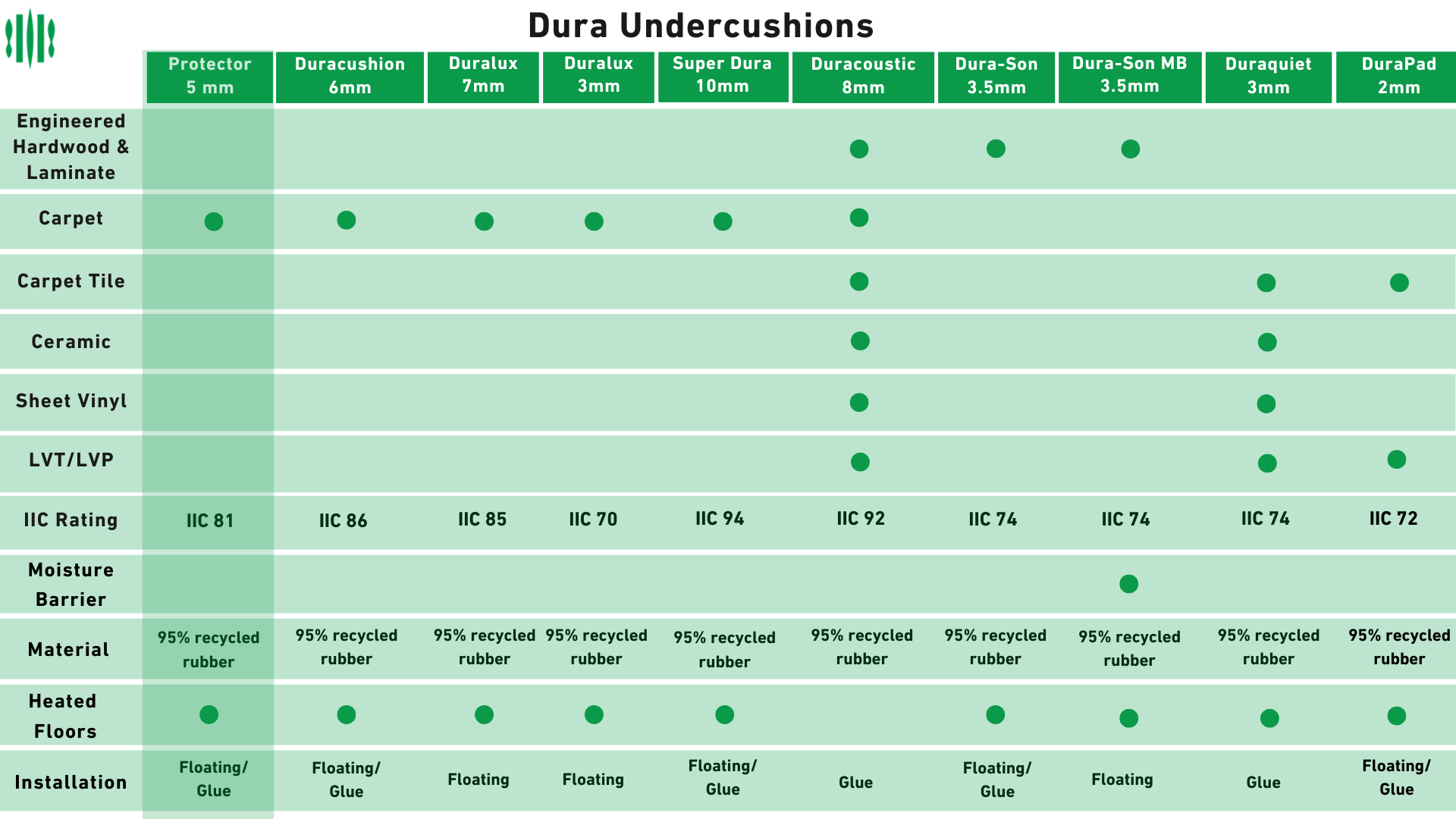

Underlayment Comparison Guide

Solid and Engineered Hardwood, and Laminate

Ceramic, Natural Stone, and Carpet Tile

Vinyl

Carpet and Area Rug
